Johnson & Johnson Vision

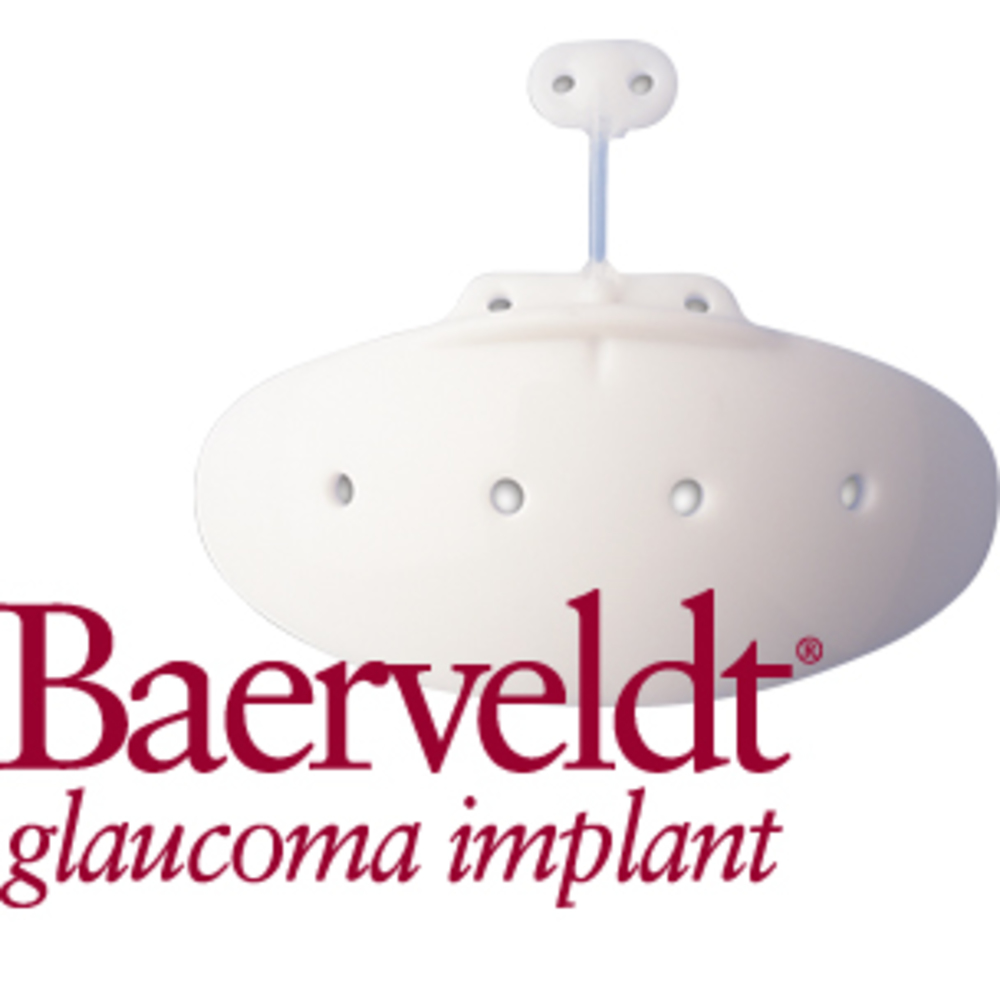

Baerveldt
![](https://dc-ophthalmology.com/rails/active_storage/representations/redirect/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaHBBZ0VDIiwiZXhwIjpudWxsLCJwdXIiOiJibG9iX2lkIn19--59a34eb4c6340e9c4de24d2a4b70cfc442458c6f/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaDdCem9MWm05eWJXRjBTU0lJYW5CbkJqb0dSVlE2QzNKbGMybDZaVWtpRERRd01IZzBNREFHT3daVSIsImV4cCI6bnVsbCwicHVyIjoidmFyaWF0aW9uIn19--9320130a01665a3428ad5eee2181fb8982ab2796/Baerveldt.jpg)
Description
Large plate implants, such as BAERVELDT® Implants, facilitate aqueous outflow to help provide IOP control.
- Allows improved aqueous filtration
- Maximizes pressure relief
BAERVELDT® Implants only require single-quadrant insertion, allowing for better IOP control than competing implants.
The BAERVELDT® Implants’ patented bleb control mechanism allows fibrotic tissue growth through the fenestrations in the plate, controlling bleb height and volume.
- Minimizes the likelihood of ocular motility disturbances
- Helps ensure a low profile for better globe fit
Baerveldt BG 103-250 | Baerveldt BG 101-350 | Baerveldt BG 102-350 | |
---|---|---|---|
Surface area: | 250mm² | 350mm² | 350mm² |
Plate length: | 22mm | 32mm | 32mm |
Tube length: | 32mm | 32mm | 7mm |
Fenestrations: | 4 | 4 | 4 |
Placement: | Anterior chamber | Anterior chamber | Posterior chamber |
Drainage mechanism: | Open tube | Open tube | Open tube with Hoffman Elbow |
